Madhav Filtcare & Hydraulics manufactures and supplies filtration trolleys, also known as filter carts, for hydraulic and lubrication oil cleaning across all Over India and Overseas Customers. A filtration trolley is a portable, wheel mounted pump and filter unit used to clean oil while it sits in a reservoir, to filter new oil before it goes into a machine, or to transfer oil between drums and tanks while removing contamination at the same time.
Based in Ahmedabad and in the filtration industry since 2011, we build filtration trolleys for plants across all Over India and Export Customers.
Perdominant & Proven
Add On:
- QRC
- Motor Non-Reverse Function
- Oil Filtration Kit
- 5 Pin Plug
- Other Flow & Micron Ratings on Request

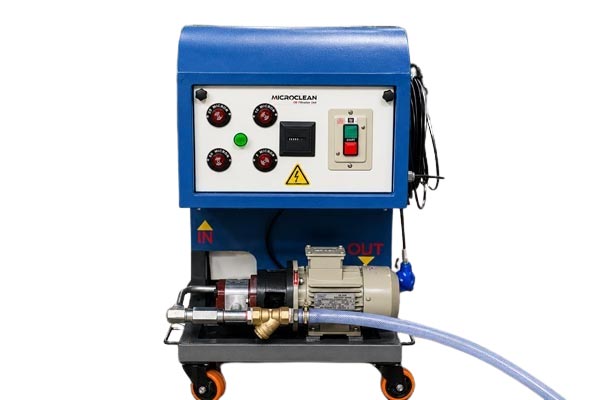

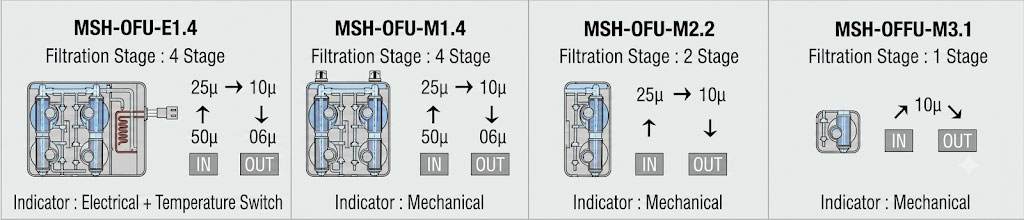

Off-Line Filtration Unit
| MSH-OFU-M2.2 | |
|---|---|
| Technical Specifications | |
| Pump | 9 LPM AND HIGHER SIZE ON REQUEST |
| Liquid Compatibility | Hydraulic Oil (P69-HLP68) |
| Input Nozzle | 3/4″ |
| Output Nozzle | 3/4″ |
| Electric Motor | 0.37 kW (0.5 HP) |
| Castors | 3″ PU – Mild Steel / 300 kg |
| Filter Customer Requirement |
Wire Mesh: 100, 50 & 25 Micron Glass Fiber: 10 & 06 Micron Paper: 10 & 06 Micron |
| MSH-OFU-M3.1 | |
|---|---|
| Technical Specifications | |
| Pump | 9 LPM AND HIGHER SIZE ON REQUEST |
| Liquid Compatibility | Hydraulic Oil (P69-HLP68) |
| Input Nozzle | 3/4″ |
| Output Nozzle | 3/4″ |
| Electric Motor | 0.37 kW (0.5 HP) |
| Castors | 3″ PU – Mild Steel / 300 kg |
| Filter Customer Requirement |
Wire Mesh: 100, 50 & 25 Micron Glass Fiber: 10 & 06 Micron Paper: 10 & 06 Micron |
Link Consumption in The Field
- Rubber Moulding Machinery
- Plastic Moulding Machinery
- Steel, Cement, Mining, Paper and Sugar Industries
- Power, Plywood and Aluminium Die-Casting Industries
- Ceramic Industries
Praise of Machine
- Suitable for Online and Offline Cleaning
- Simple and Rugged Design
- Quiet Operation
- Portable and Easy to Move

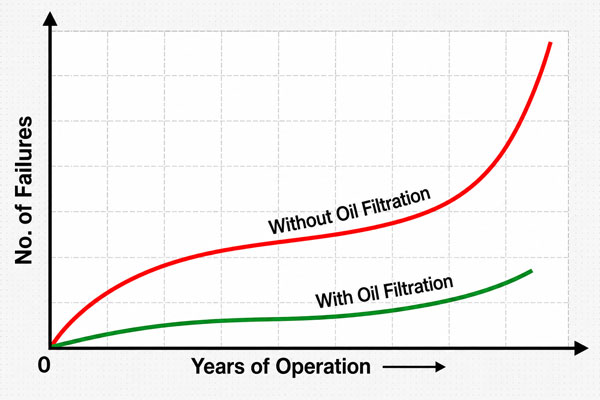

Why Contamination Control Is Essential

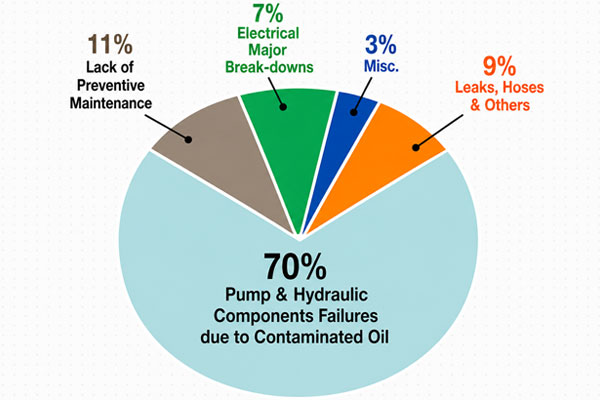

It is estimated that 70% of hydraulic system failures are due to poor oil condition. Cleanliness of hydraulic oil is immensely important and must be done effectively.
The contaminants may come from fresh oil, the machine itself, or external sources. Smaller particles ranging from 20 to 40 microns are most commonly responsible for abrasive wear. These particles are small enough to enter proportional flow and pressure valves, pumps, and other components, causing surface damage, high-stress points, and jamming.
Why Choose Madhav Filtcare for Filtration Trolleys?
- Achieves the recommended level of cleanliness: ISO 4406-16/13, NAS 1038 and SAE 745D-4
- Filter choke-up warning through a mechanical clog indicator
- Portable and easy to operate
- Ideal for both online and offline filtration
- Gradual filtration for longer filter life
Advantages
- Effectively removes contaminants and reduces hydraulic component failures
- Filters oil without affecting its properties, thereby improving oil life
- Energy-saving operation with minimal running cost
- Improves machine performance, efficiency and uptime
- Reduces machine maintenance expenses

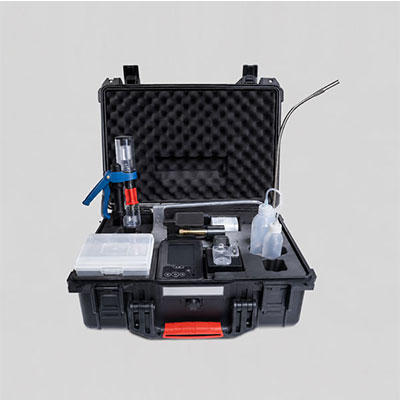

Oil Testing Kits Available:
An oil testing kit is a tool used to assess the quality and condition of oil in various machinery or engines. It helps detect contaminants, moisture, acidity, and wear particles, ensuring optimal performance and preventing costly breakdowns. Regular testing with these kits can extend equipment lifespan and improve maintenance efficiency.
Applications and Industries We Serve
Filtration trolleys are used for filtering new oil before it is filled into a machine reservoir, scheduled offline cleaning of reservoir oil to extend fluid life, transferring oil between drums or bulk tanks and machine tanks while filtering at the same time, and flushing lines during commissioning or after a repair, across machine tool, power, cement, steel, and process industries in All over INDIA and Overseas Customers.
Defence
Power Industry
Petrochemicals
Steel Industry
Cement Industry
Engineering Industry
Paper Industry
Sugar Industry
Plastic Industry
Automobiles
Mining
Frequently Asked Questions About Filtration Trolleys
It is used to clean hydraulic or lubrication oil while the oil sits in a reservoir, to filter new oil before it is used, and to transfer oil between drums or tanks while removing contamination along the way.
Yes. New oil is rarely as clean as it needs to be for sensitive equipment, and running it through a filtration trolley before filling your machine helps protect pumps and valves from day one.
No. It works alongside your machine’s own filtration, giving you an offline way to clean reservoir oil or filter new oil without opening up the machine’s main hydraulic circuit.
This depends on how clean your system needs to be. Glass fiber elements suit a fine, guaranteed cleanliness target, while SS wire mesh elements are a reusable option for general pre filtration. Share your target ISO cleanliness code and we can recommend a media type.
Yes. Its wheeled design is meant for moving between reservoirs, drums, and machines as needed, rather than being fixed to one piece of equipment.
Share your reservoir size and target cleanliness for a filtration trolley recommendation. Call +91 84600 90233 or write to info@madhavfiltcare.com.
